G-Technology G-SPEED Shuttle SSD
A Scorching Fast RAID Powerhouse

G-Technology G-SPEED Shuttle SSD

G-Technology Products
Desktop Products
G-SPEED Shuttle Thunderbolt 3 SSD - 8TB
Transportable, Hardware RAID 8-Bay Thunderbolt 3 Storage Solution with SSD, 5-Year Warranty
#0G10188
Our Price: $5,099.95
G-SPEED Shuttle Thunderbolt 3 SSD - 16TB
Transportable, Hardware RAID 8-Bay Thunderbolt 3 Storage Solution with SSD, 5-Year Warranty
#0G10193
Our Price: $7,599.95

Click here to jump to more pricing!

G-SPEED Shuttle SSD DescriptionOverview:

The G-SPEED Shuttle SSD device with Thunderbolt 3 technology a transportable design lets you edit multi-camera footage in real time and quickly export with incredible efficiency on location and back to the studio.

Equipped with up to 16TB1 of solid state storage running at a scorching fast 2800MB/s2, the G-SPEED Shuttle SSD device with Thunderbolt 3 technology saturates the Thunderbolt bus to provide incredibly fast transfer speeds. A transportable design lets you easily carry it on-location and back to the studio, and with optimized 4K, 8K and VR support, you get the bandwidth to edit multi-camera footage in real time, render multi-layer effects, and quickly export with incredible efficiency. Built-in hardware RAID offers several redundancy options, while dual Thunderbolt 3 ports are ready for daisy-chaining up to five additional devices. Combined with a trusted 5-year limited warranty, the G-SPEED Shuttle SSD provides reliable, highperformance storage to scale with all your productions.

Key Feature

  • Up to 16TB1 of capacity for demanding production workflows
  • A transportable design for easy travel from studio to location and back
  • Sustained transfer rates up to 2800MB/s2
  • Optimized to support multi-stream 4K, 8K and VR workflows
  • Built-in hardware RAID (supports RAID 0, 1, 5, 10 and 50)
  • Dual Thunderbolt 3 ports for easy daisychaining (backwards compatible with Thunderbolt 23)
  • 5-Year limited warranty

1 As used for storage capacity, one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment.
2 Based on read speed. As used for transfer rate, megabyte per second (MB/s) = one million bytes per second. Performance will vary depending on your hardware and software components and configurations.
3 Thunderbolt 2 connectivity requires a Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter, sold separately.

Features:

Ideal Capacity For Demanding Production Workflows

Up to 16TB of high-performance solid-state storage so you’re always able to transfer your critical 4K, 8K, VR, high dynamic range (HDR) and high frame rate (HFR) footage in a single location.

Transportable Design

Built for easy travel between your on-site production location and to the studio for post-production so you have powerful, transportable storage to help improve your workflow efficiency, wherever you are.

Sustained Transfer Rates Up To 2800MB/s

Transfer rates up to 2800MB/s deliver incredible speed via Thunderbolt 3 so you can natively edit footage in real-time, or transfer as much as a terabyte of content in seven minutes or less.

Optimized Support For Multi-Stream Workflows

Built for multi-stream 4K, 8K, and VR production workflows and offers the bandwidth to support multi-camera editing in real time, render footage with multi-layer effects, and quickly export in an efficient workflow.

Built-in Hardware RAID

For maximum performance, the G-SPEED Shuttle SSD device comes in RAID 5 out of the box and supports RAID 0, 1, 5, 10 and 50 to provide a versatile and flexible storage solution.

Daisy-chaining for up to 5 additional devices

Dual Thunderbolt 3 ports allow you to daisy chain up to five additional devices so you can stay connected to multiple drives, 4K displays and more, through a single connection to your computer.

5-Year Limited Warranty

Backed by a 5-year limited warranty, you can be confident in the reliable storage of the G-SPEED Shuttle SSD for years to come.

Specifications:

G-SPEED Shuttle SSD Specifications

G-SPEED Shuttle SSD Specifications
Interface (2x) Thunderbolt 3 Ports
Drive (8x) Solid State Drive
Data Transfer Rate Up to 2800MB/s
RAID Built-in hardware RAID (supports RAID 0, 1, 5, 10 and 50)

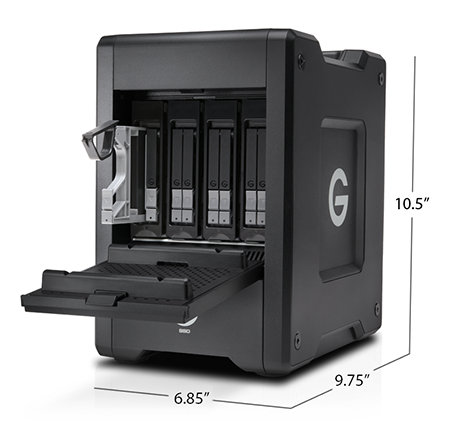

Size (LxWxH) 9.75” x 6.85’ x 10.5” / 247.6 x 174.0 x 266.7 mm
Weight 13.29 lbs / 6.03 kg
System Requirements macOS 10.12+
Windows 10, Windows 7 (via reformat)
Box Contents G-SPEED Shuttle SSD 8-Bay Storage System
(8) Removable solid state drive modules
(1) Thunderbolt cable (40 Gbps)
Power cord
Quick Start Guide
5-Year limited warranty
Retail Packaging (LxWxH) 13.63” x 11.63” x 13.63” / 346 x 295 x 346 mm

Compare:


Product Thunderbolt USB-C USB FireWire eSATA mini-SAS RAID Enabled ev Series Enterprise-class1 HDD
G-SPEED Shuttle with Thunderbolt 3
G-SPEED Shuttle XL with Thunderbolt 3
G-SPEED Shuttle XL with Thunderbolt
G-SPEED Shuttle with ev Series Bay Adapters (Thunderbolt 3)
G-SPEED Shuttle XL with ev Series Bay Adapters (Thunderbolt 3)
G-SPEED Shuttle XL with ev Series Bay Adapters
G-RAID with Thunderbolt 3
G-RAID with Thunderbolt
G-RAID with Removable Drives
G-RAID USB with Removable Drives
G-DRIVE with Thunderbolt 3
G-DRIVE USB-C
G-DRIVE with Thunderbolt
G-DRIVE USB

1 Used in extreme “enterprise” environments such as multiuser computer systems, server applications, and tiered storage arrays.

Views:

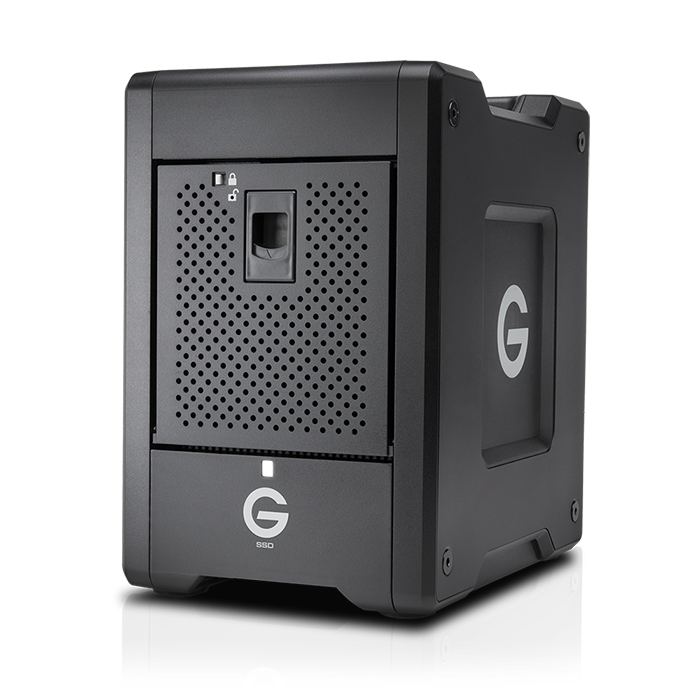

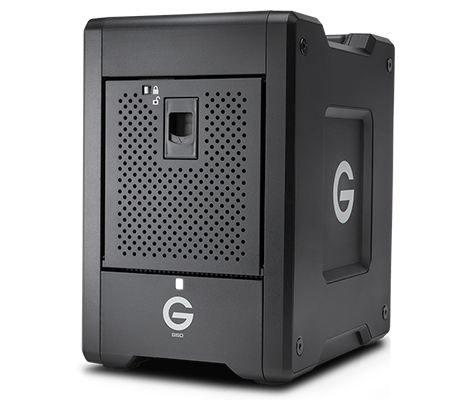

Left Angle View

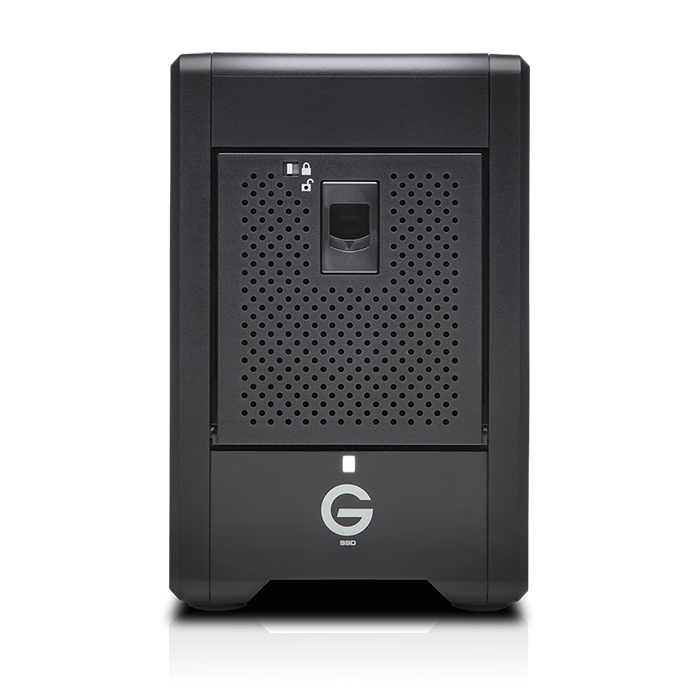

Front View

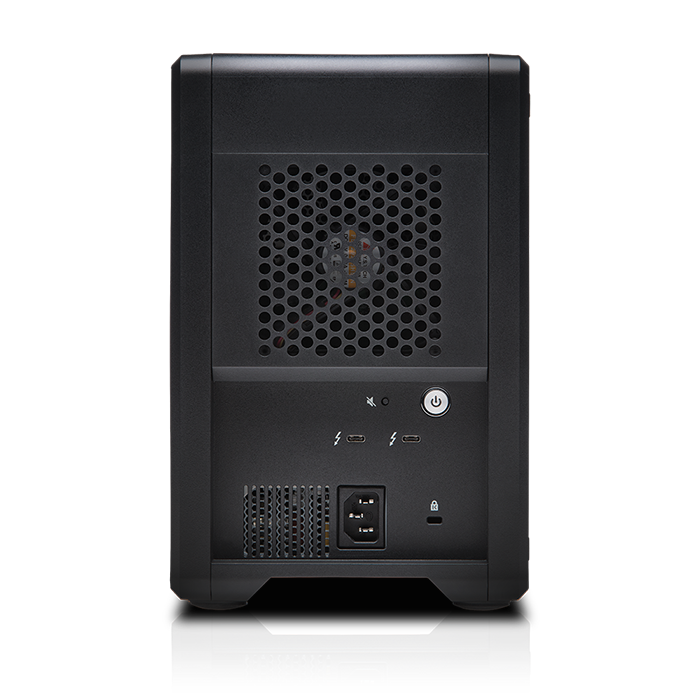

Rear View

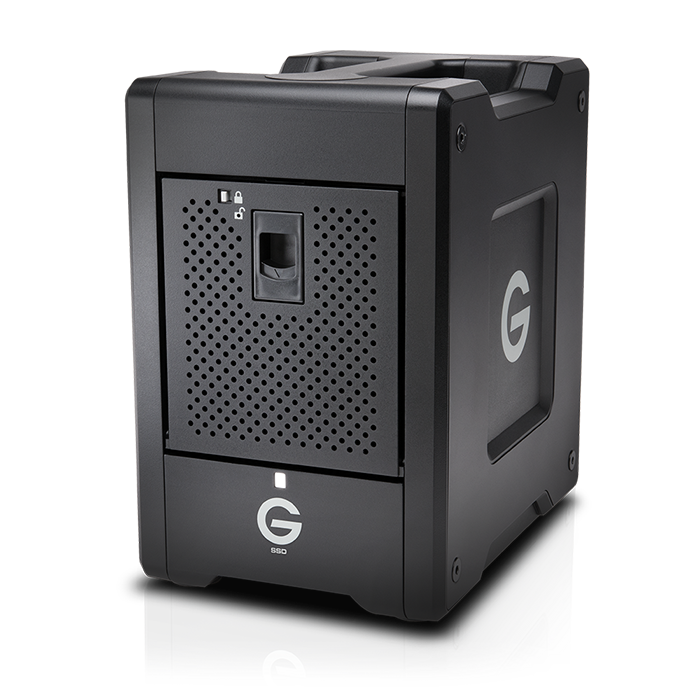

LeftTop Angle View

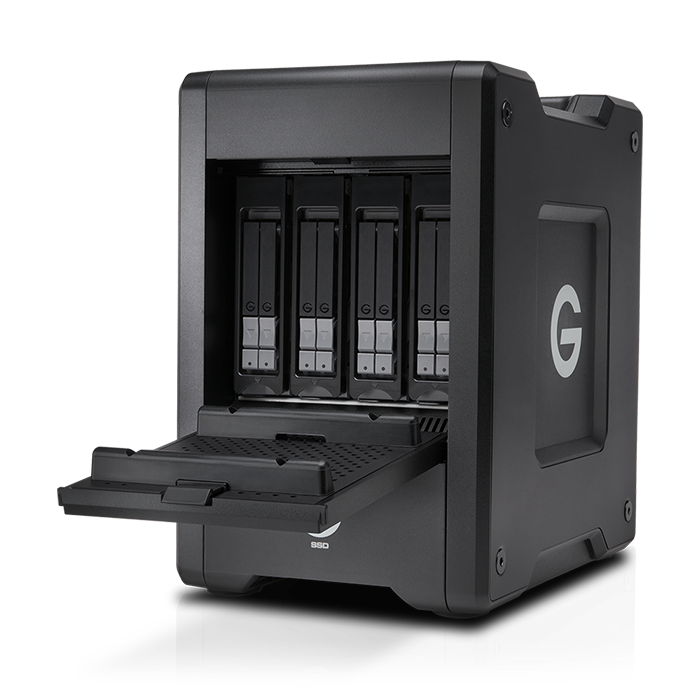

Open View

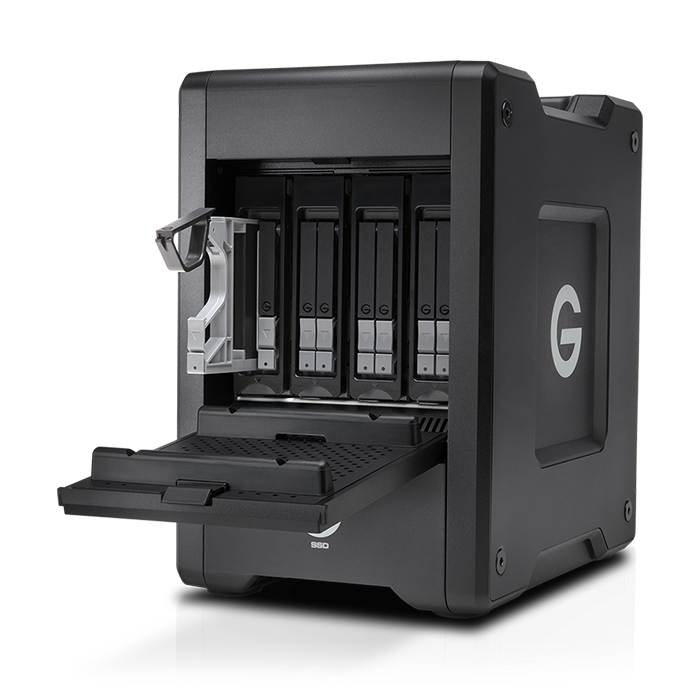

Module Out View

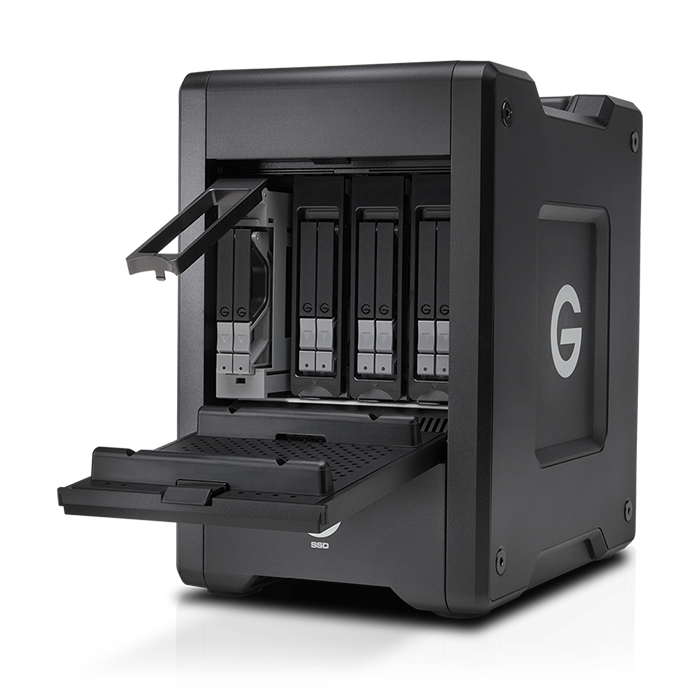

Cartridge Out View

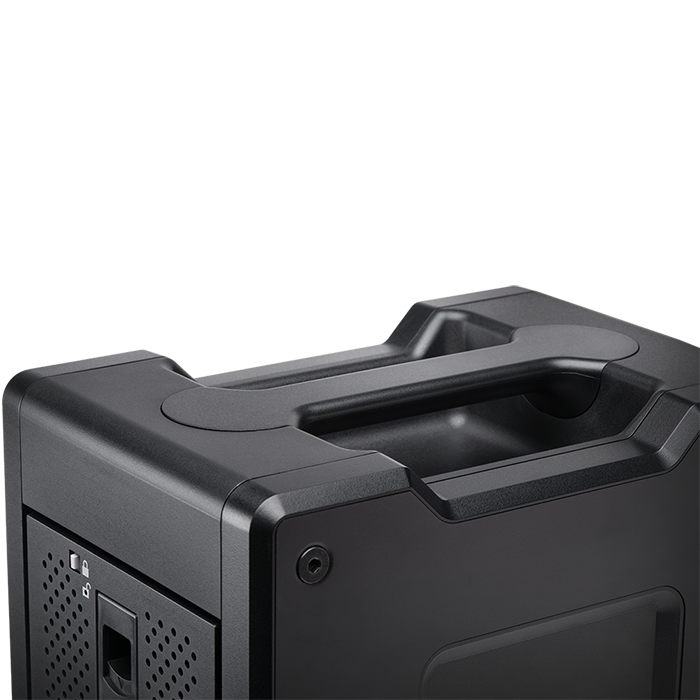

Handle View

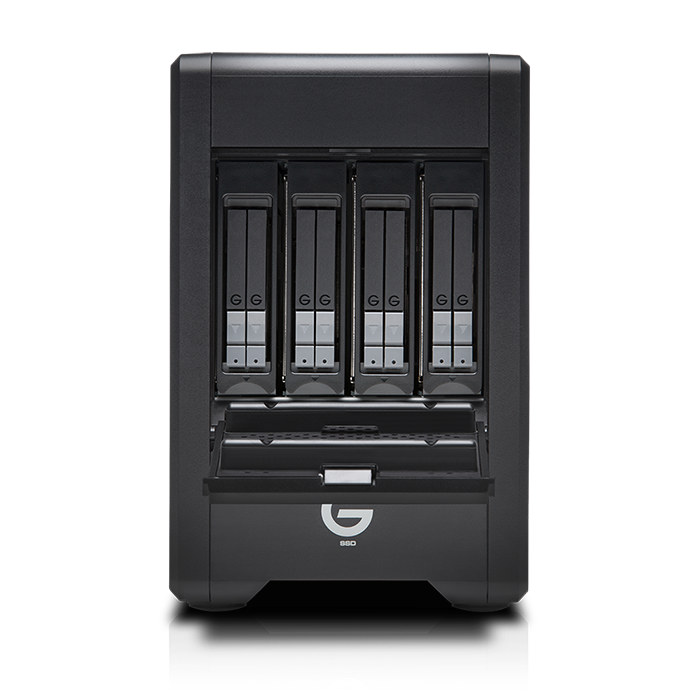

Front Open View

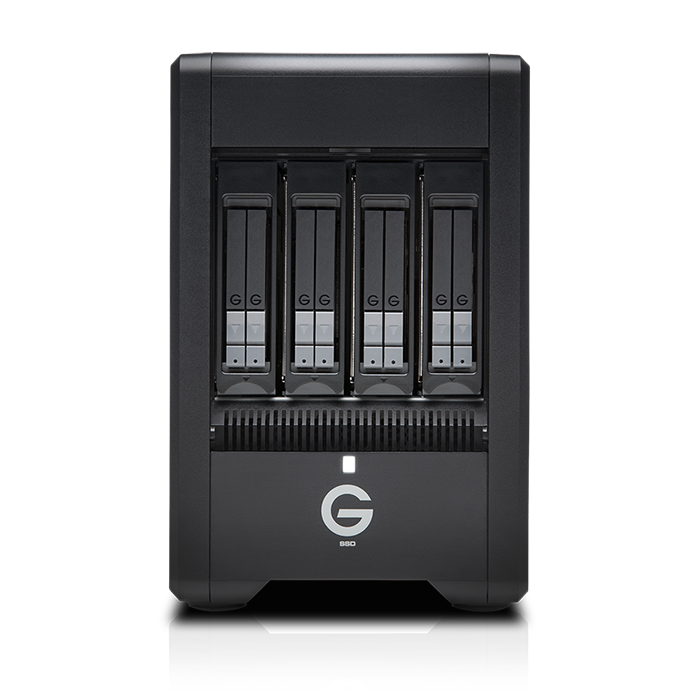

No Door Front View

Video:



Documentation:

Download the G-Technology G-SPEED Shuttle SSD Datasheet (.PDF)
